Shaping the Backbone of Infrastructure- A Guide to Steel Arch Cold Bending Machines
In tunnel excavation, bridge construction, and large-scale mine support projects, steel arches serve as the indispensable "backbone." The core equipment that imparts precise curves to these rigid steel sections is the Steel Arch Cold Bending Machine. Unlike traditional hot bending, cold bending technology has become the mainstream choice for modern steel structure processing due to its preservation of material physical properties and high processing efficiency.

1. Core Working Principle: Plastic Deformation at Ambient Temperature
The operation of a steel arch cold bending machine centers on hydraulic transmission and the three-point bending principle.

Hydraulic Drive: An electric motor drives a high-pressure oil pump, converting hydraulic energy into mechanical energy. The immense thrust generated by the hydraulic cylinder acts on the top roller (or pressing head).
Physical Deformation: The device utilizes the torque formed by two support rollers and one pressing roller to apply pressure exceeding the yield strength of the steel (such as H-beams, I-beams, or channels) at room temperature, causing permanent plastic deformation.
Performance Advantage: Since the process occurs at ambient temperature, the metallographic structure of the steel does not undergo drastic changes caused by high temperatures (as in hot bending), thereby maximizing the retention of the steel's original tensile and compressive strength.

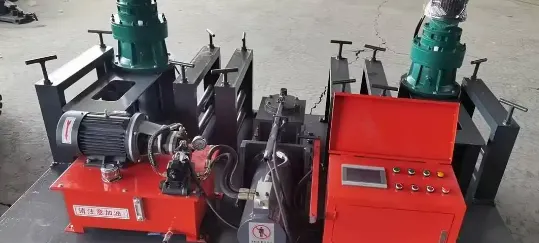

2. Equipment Construction and Technical Keys
A high-performance cold bending machine typically consists of four key systems:

High-Strength Frame: Welded from thickened steel plates, it serves as the carrier for tens or even hundreds of tons of bending force and must possess extremely high rigidity.
Hydraulic Actuation System: Comprising an oil tank, pump station, relief valves, and high-pressure cylinders, it is responsible for providing stable and powerful motive force.
CNC/Electrical Control System: Modern equipment is often equipped with PLC control, allowing operators to precisely set the bending radius via a touch screen, achieving high consistency in repetitive processing.
Universal/Specialized Molds: Molds are replaced according to the specifications of the steel being processed (e.g., 18# I-beam or 25# channel) to ensure the steel does not twist or become unstable during bending.
3. Industry Applications and Economic Value
The application scenarios of cold bending machines are directly linked to the structural safety of engineering projects:

Tunnel Support: Formed arch supports effectively resist ground pressure and prevent cave-ins.
Bridge Arch Ribs: Providing precise curved components for landscape bridges or large-span arch bridges.
Economic Benefits: Compared to traditional processes, cold bending machines significantly reduce energy consumption (no heating required) and offer fast processing speeds, greatly shortening project cycles.

4. Maintenance and Safety Standards
To ensure long-term stable operation, lubrication and hydraulic oil management are of paramount importance. Operators should regularly check the cleanliness of the hydraulic oil and are strictly prohibited from forcing the equipment to operate under overload conditions. During operation, personnel must stand behind the safety line and are strictly forbidden from touching the molds or the edges of the steel while the machine is under pressure.
