The "Sharp Weapon" for Sand and Gravel Separation in Rivers and Coal Yards

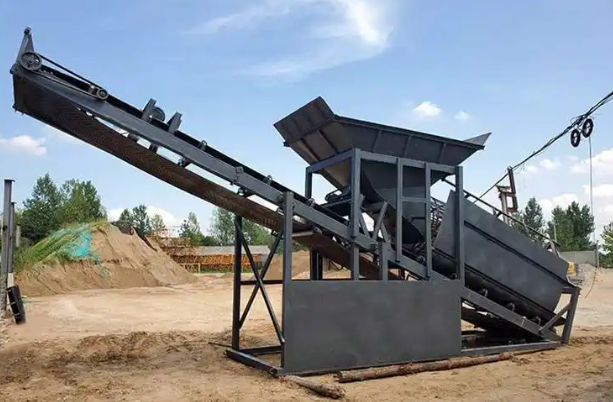

In river training, reservoir construction, and coal yard operations, how to efficiently and accurately separate sand and gravel has always been a critical link in engineering tasks. The vibrating sand screening machine, also vividly known in the industry as the dryland sand screening boat or sand and gravel separator, is specialized equipment born to meet this very demand. By utilizing a vibrating screen to efficiently sift raw river stones, it performs exceptionally well in processing and classifying gravel. Not only does it boast low operating costs, but it also possesses immense productivity, fulfilling the rigorous requirements of various construction sites. This article will provide a comprehensive analysis of this highly economical and practical engineering equipment.

1. Adapting to Local Conditions: Equipment Types and Application Scenarios
To adapt to different working environments and material characteristics, sand screening machines have evolved into various forms. The most common types on the market today include the drum-type sand screening machine, the washing drum-type sand screening machine, and the vibrating screen-type sand screening machine. Despite their different forms, they all adhere to the design philosophy of simple structure and easy operation. Whether it is dry land operations or wet screening requiring water, these machines can efficiently complete the initial screening and fine processing of raw materials, significantly reducing manual labor and time costs.

2. Internal Anatomy: A Rigorous Structural Composition
An efficiently running vibrating sand screening machine is like a precise mechanical beast, with its internal structure consisting of multiple tightly engaged core components:

Skeletal Support System: This is the "torso" of the equipment. The main beam is primarily welded from sturdy channel steel, angle steel, and steel pipes to provide core support; the auxiliary beam is composed of channel steel, steel pipes, and walking traction devices, balancing stability with mobility.
Storage and Operation System: The sand bin is mostly made of high-quality steel plates, rectangular pipes, and channel steel, capable of withstanding the impact and heavy pressure of massive amounts of sand and gravel. The rotary screen section consists of a rotary screen motor, a reducer, and a main shaft mesh frame, serving as the core working area for material separation.
Power Transmission System: This is the "heart" of the equipment. Power output from the motor is regulated by the reducer, and then smoothly transmitted to the conveyor belt rollers and various moving parts via belts, gears, or chains, ensuring a fluent screening process.

3. Precautions: Emergency Power Outage Handling and Daily Maintenance
Because the working environment of a sand screening machine is usually accompanied by a large amount of dust and mud, the harsh conditions require operators to master correct emergency response measures and daily maintenance procedures.

Emergency Protocol for Sudden Power Outages: If a sudden power outage occurs during operation, the primary task is to immediately turn off the power to the feeding system and the rotary screen conveyor. Following this, at least half of the accumulated sand on the conveyor belt must be manually cleared. This step is crucial, as it effectively prevents the motor from burning out or components from being damaged due to excessive load when the power returns and the machine restarts.
Rigorous Daily Maintenance: The lifespan of the equipment depends on daily care. Before starting the machine, the oil level of the reducer must be checked and replenished if insufficient; for exposed bearings, sleeves, and cross shafts, lubricating grease must be added once every shift (typically 8 hours). In addition, the tension of the V-belts needs to be checked daily; if any broken threads or unglued parts are found, they should be replaced immediately. A smart operator will record the models and specifications of all V-belts in advance and keep adequate spare parts on hand for emergencies.
4. Ingenious Design: Three Core Features of the Equipment
The reason the vibrating sand screening machine stands out among numerous engineering devices is due to three significant advantages in its design:

Extremely Simple Installation Foundation: The entire equipment adopts a box-frame structure design, eliminating complex infrastructure requirements. It only needs a flat piece of ground to be set up. If the ground is hardened, it is even more conducive to daily cleaning and maintenance.
High Level of Overall Integration: Except for the finished product stacking belt conveyor, all systems of the equipment are ingeniously integrated into a single main frame. This design not only ensures the structural integrity of the equipment but also reserves moderate space, making daily inspections and maintenance extremely convenient and safe.

Convenient and Efficient Transfer and Disassembly: The mobility of engineering equipment directly affects construction efficiency. The high integrity of this equipment provides great convenience for on-site storage and transit transportation. When it is time to move to another site, the only part that needs to be disassembled is the finished product stacking belt conveyor. Simply loosen the bottom fixing bolts, remove the hanging wire ropes, and tuck the finished product belt conveyor into the bottom of the main frame to easily pack it up and transport it, greatly reducing transfer time.
Conclusion: The vibrating sand screening machine perfectly exemplifies how straightforward mechanical design can conquer tough industrial challenges. By integrating robust construction, user-friendly maintenance protocols, and an incredibly mobile framework, it ensures uninterrupted productivity in the harshest environments. Whether navigating sudden power failures or undergoing routine part replacements, understanding its structural logic and operational guidelines empowers users to maximize the machine's lifespan and efficiency, making it an irreplaceable asset in the field of modern material processing.
